BPC Unit Datasheet
Stock unit. Quicker lead time.

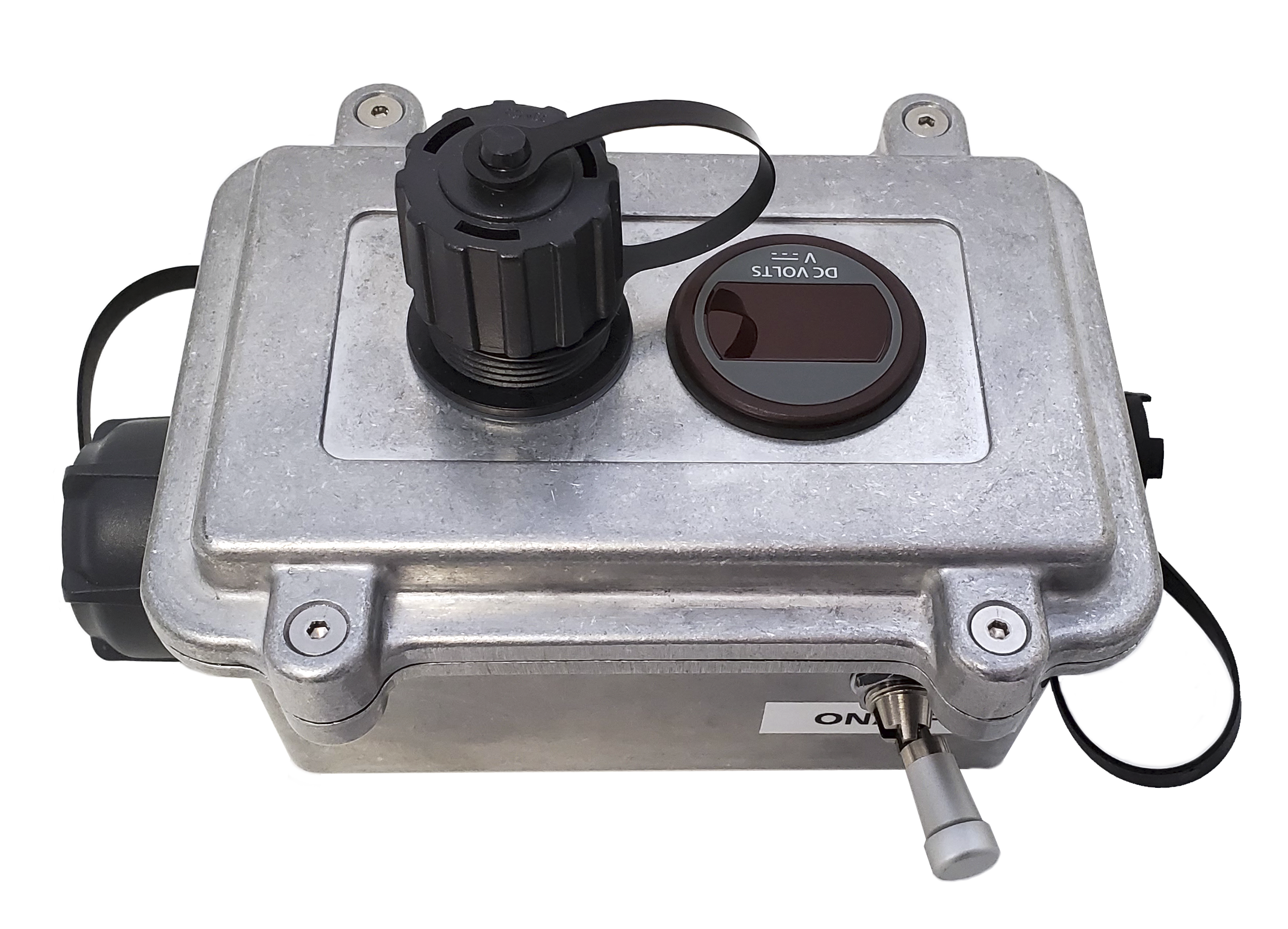

The BPC Unit boosts an input voltage range of 13-39 VDC from the boat or dock power system to 75 VDC, multiplexed with Ethernet. Utilizing a water-resistant module with IP67-rated connectors, power, and signals are transmitted over up to 500 meters of 2-wire twisted-pair cable. Once the signals reach the BPC camera, they are demuxed, providing both communication and power to the camera and all connected sensors.
Live HD Video Streaming: This device connects to a SubC Rayfin BPC camera for real-time video, digital stills, data, power, and communications over a twisted pair.
Remote Control: Controls camera functions remotely through DVR+O SCI software.
Extended Cable Length: Supports transmission over a twisted pair cable up to 500 meters.
Built-In Protection: Includes ESD, over-voltage, and short circuit protection for enhanced durability.

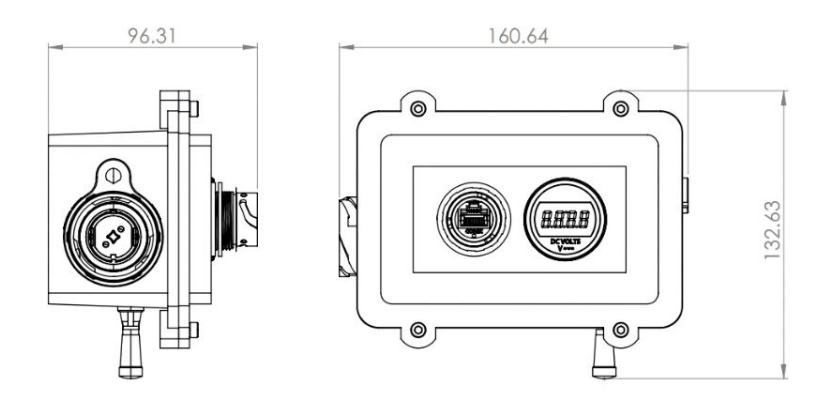

Specification | Value |
|---|---|
Maximum Transfer Speed | Up to 67 Mbit/s (dependent on cable type and length) |
Transmission Distance | 500 meters |
Input Voltage | 13 - 39 VDC |
Output voltage | 75 VDC |
Material | Aluminum |
Weight | 0.84 Kg |
Ambient operating temp | -20°C to 30°C |
Protection | ESD, Over-voltage, Short Circuit |

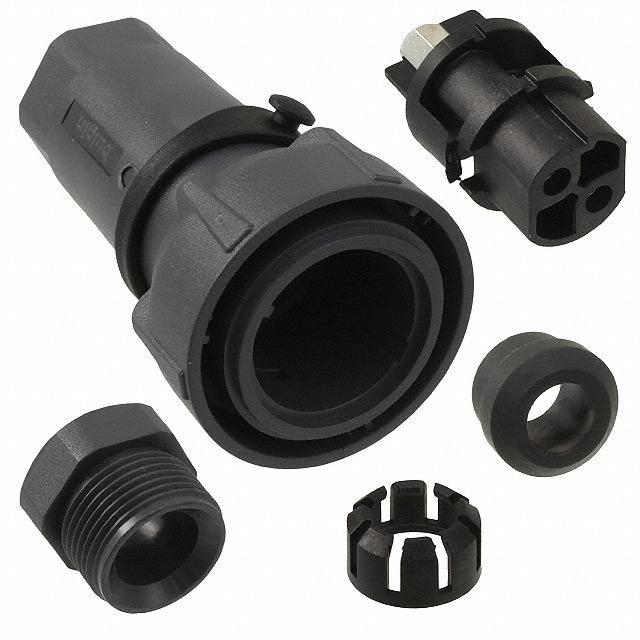

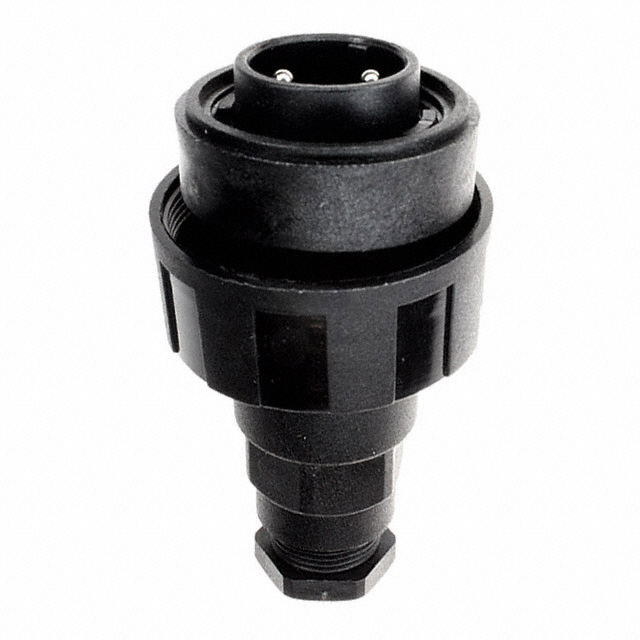

# | Conec 17-10020 100 Base Ethernet Bulkhead | Bulgin PXP7012/02P/ST Input Power Bulkhead | Bulgin PX0735/S BPC Output |
1 | (White/Orange) Rx+ [10/100] | GND | GND + BPC Data |
2 | (Orange) Rx- [10/100] | PWR In 13-39V | 75 VDC + BPC Data |
3 | (White/Green) Tx+ [10/100] |  Plug: PXP7010/02S/ST/0911 |  Plug: PX0736/P |
4 | NC | ||
5 | NC | ||
6 | (Green) TX- [10/100] | ||
7 | NC | ||
8 | NC |
BPC Unit Installation & Mounting Guide
Installation Instructions

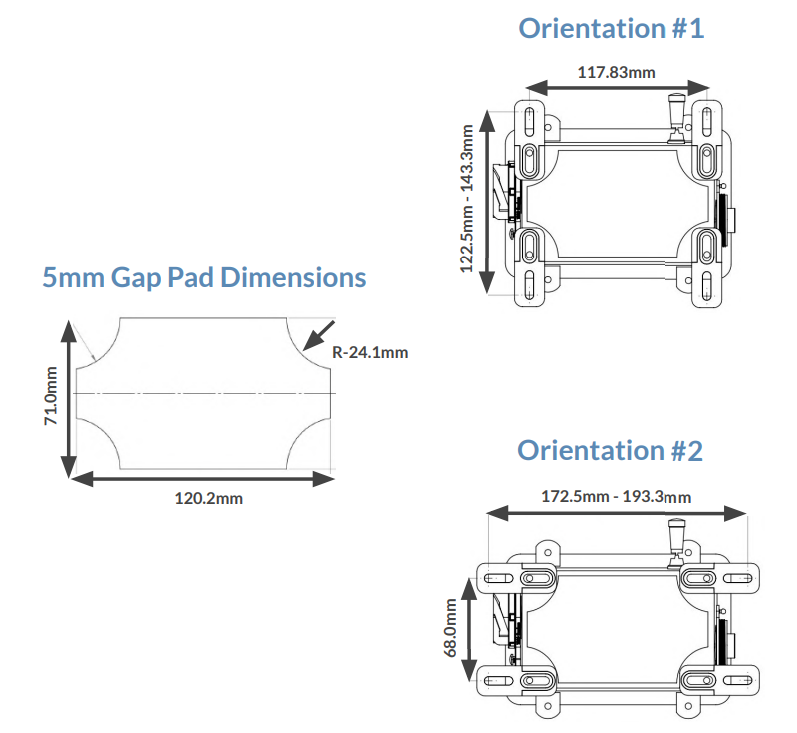

Place the mounting feet in one of the two available orientations.
The feet can be adjusted slightly before tightening, depending on the desired spacing.
Tighten the provided (x4) M5x6mm socket cap screws.
Clean the bottom of the BPC Unit with Isopropyl alcohol and a clean, lint-free cloth.
Remove the protective film on one side of the provided thermal gap pad and affix the gap pad to the bottom of the BPC Unit. Press firmly to adhere.
Clean the surface you are mounting to with Isopropyl alcohol and firmly press the BPC Unit in place and secure the feet with 4 bolts.
Only mount the BPC Unit to a metal surface for heat sinking. Do not mount to wood, plastic, fiberglass, or other poor thermally conductive materials.
Without Gap Pad: Surface temperature = 65°C
With Gap Pad: Surface temperature < 45°C
